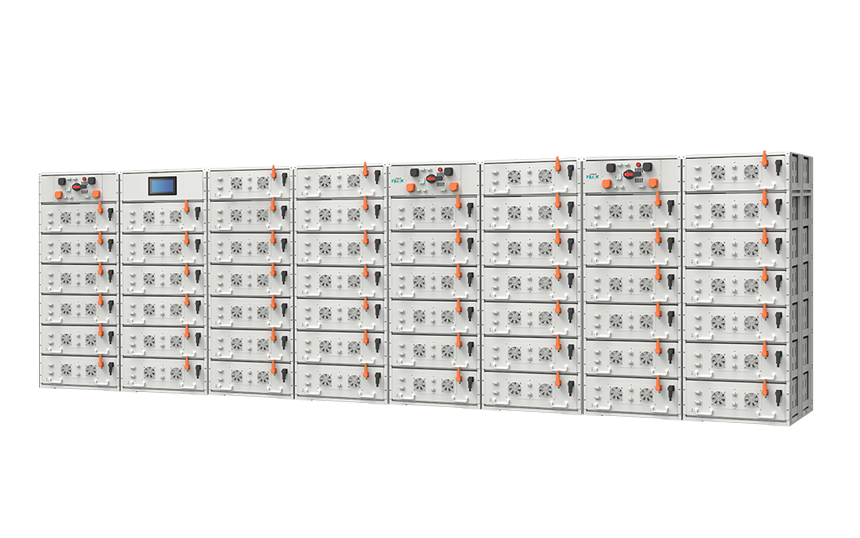

YiLiNK high-voltage battery system integrates premium high-cycle lithium iron phosphate cells and battery management system with multiple levels of protection and monitoring.


The modular design and multiple levels of control allow you to meet a wide variety of backup needs for residential sites, commercial sites, industrial areas and communities.


The reliable battery cells and energy management system can solve the power demand of each scenario and also bring excellent return on investment for the owner.

Application:
Utility, Industrial & Commercial Projects
Certification:
Utility C&I Batteries 192V-1500Vdc LiFePO4 Lithium Battery YlLlNK

Share it:

  • Specification
  • Features
  • Download
  • Video

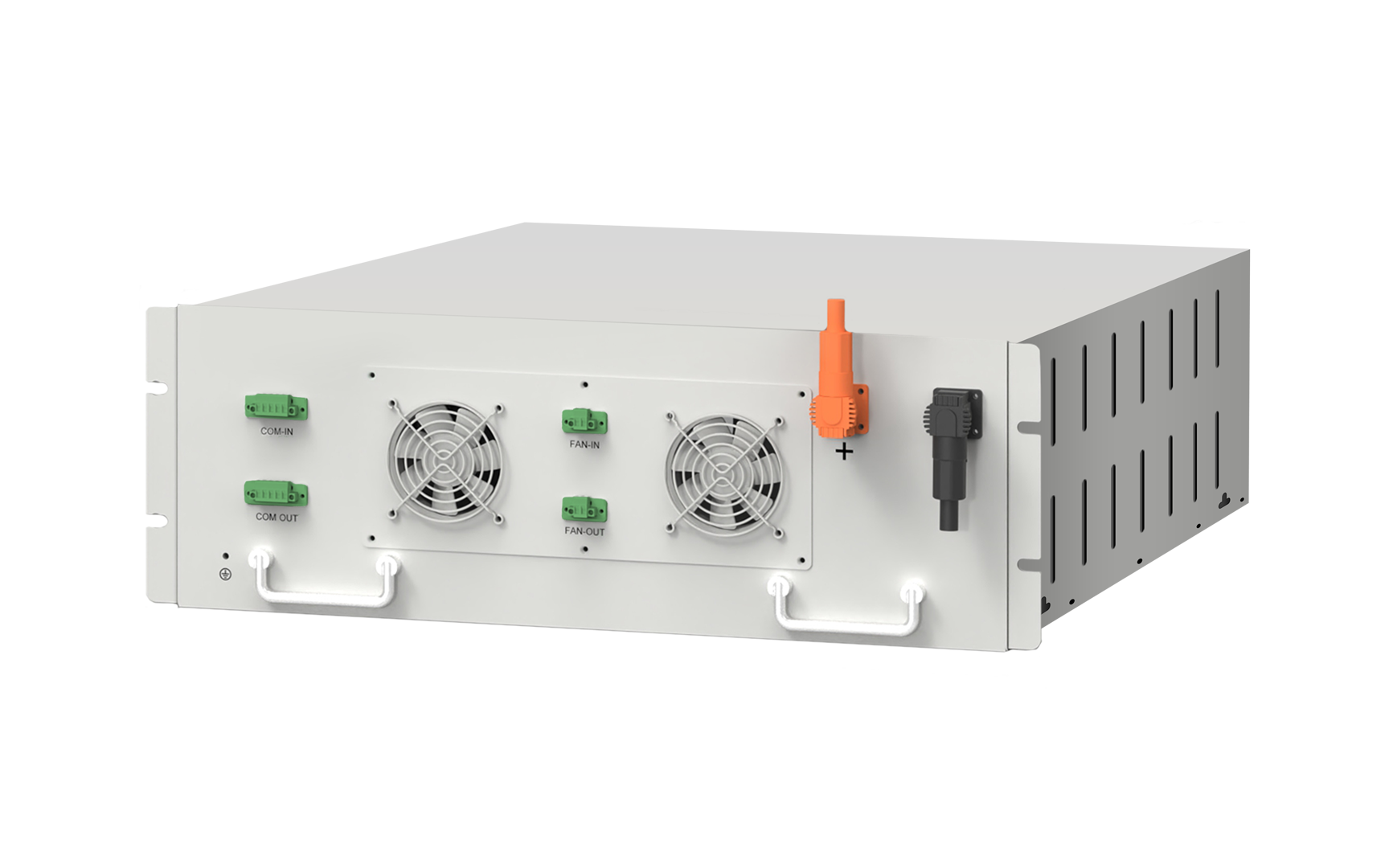

Module UnitHVM206HVM280HVM412
Battery TypeLiFePO4
Nominal Voltage(V)48
Nominal Capacity(Ah)206280412
Energy (kWh)9.88813.44019.776
Cycle LifeMore than 6,000 Times, @0.2C, 80% DoD, 25℃
Dimension (mm)Depends on Specific Project

*: @0.2C, 80% DoD, 25℃

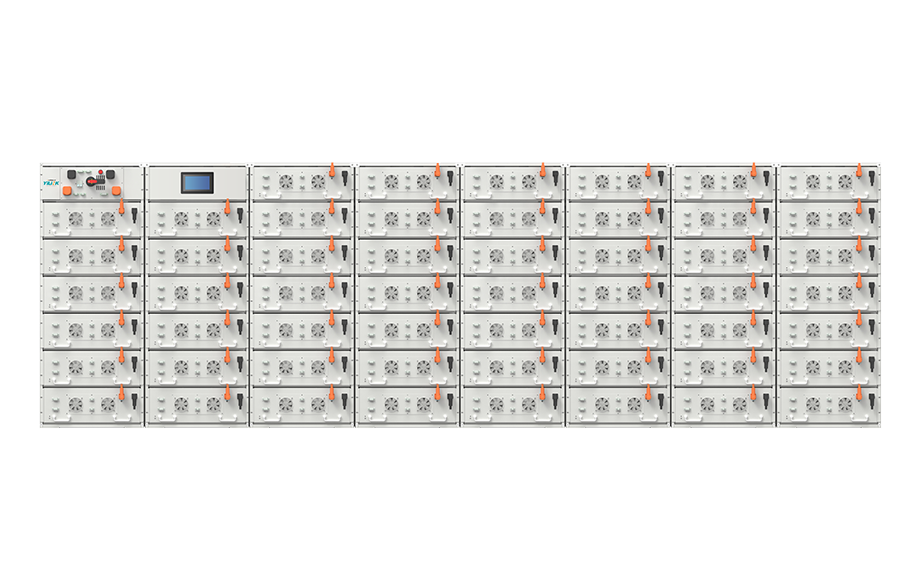

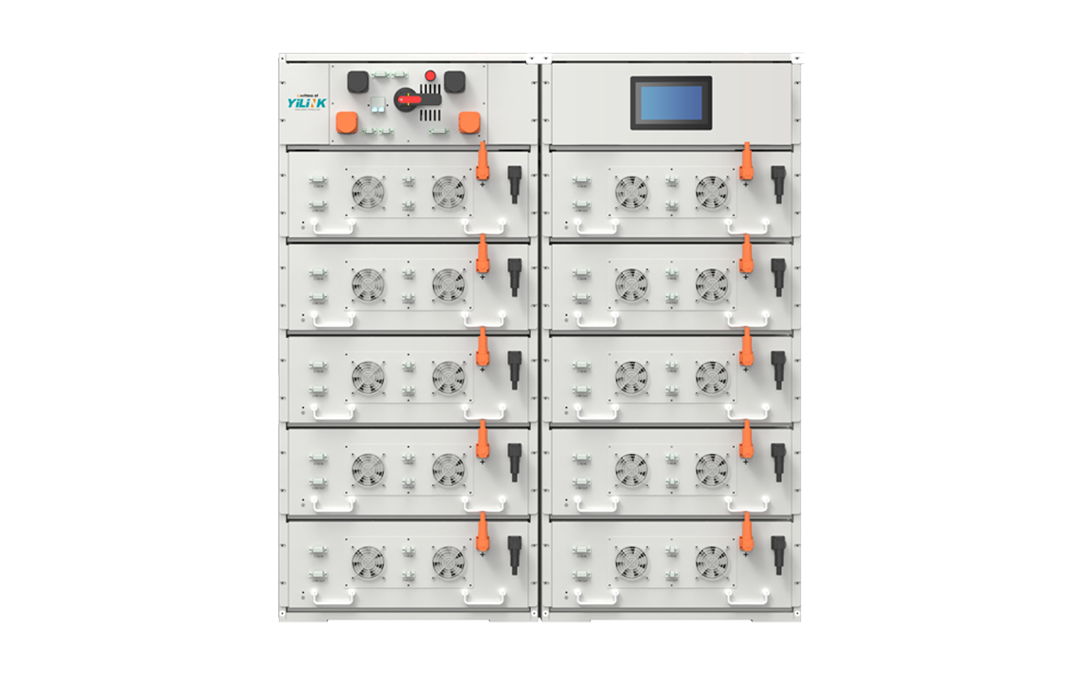

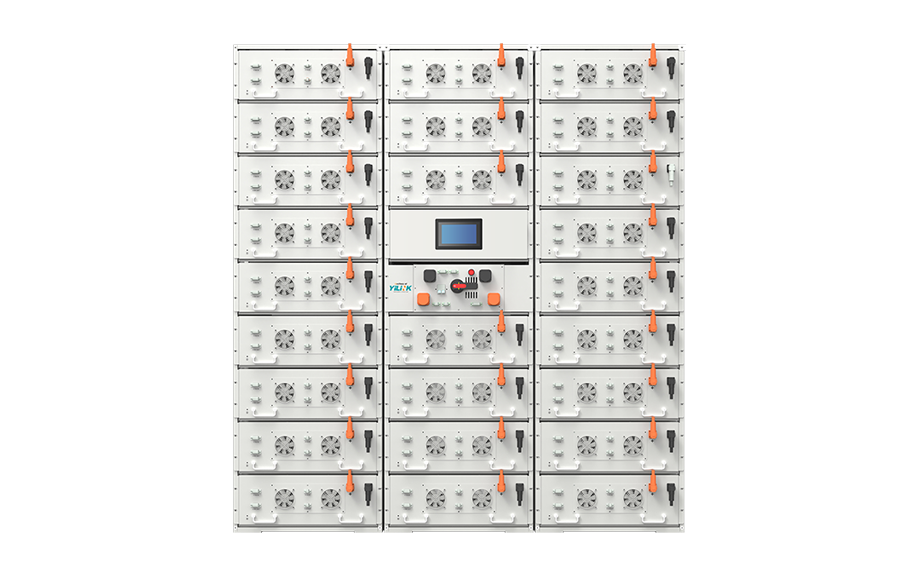

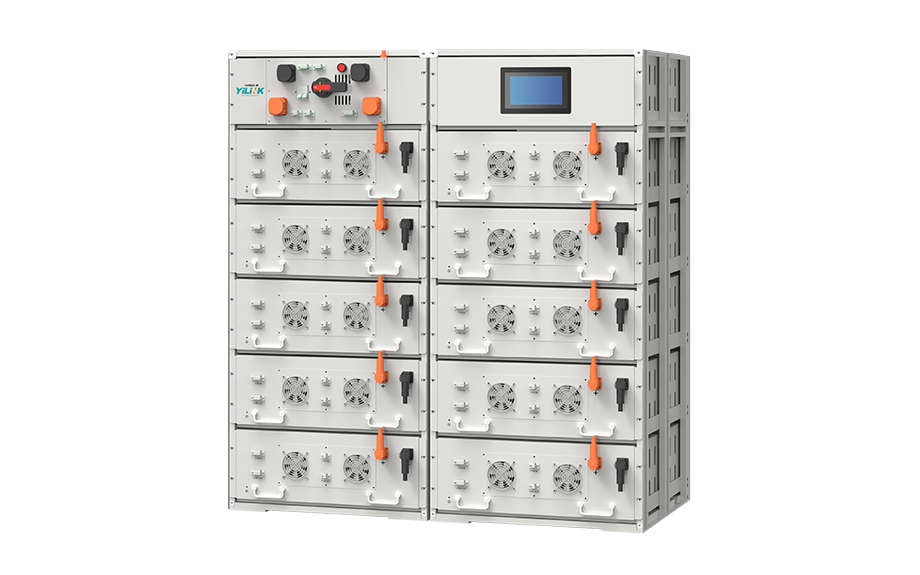

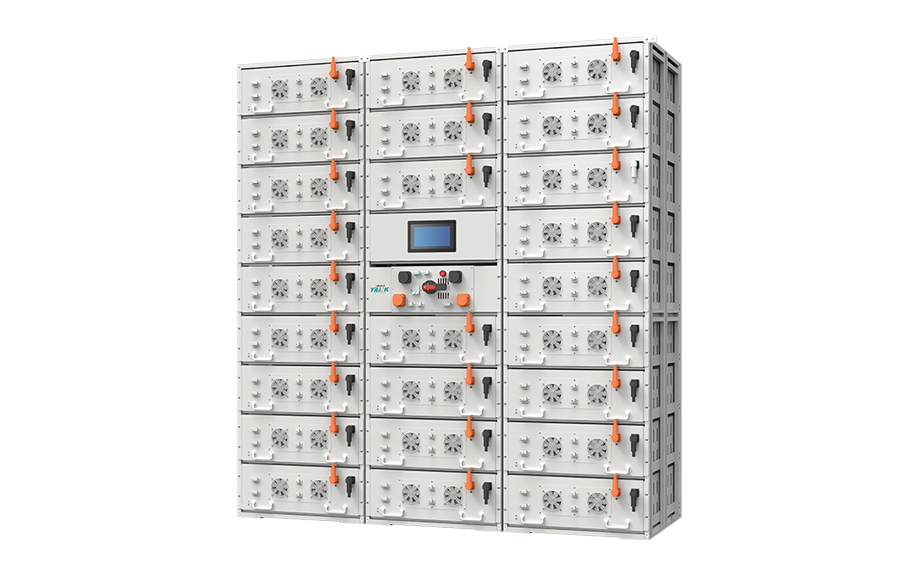

Typical ModelYL-C384280YL-C528280YL-C720280YL-C1248280YL-C1248412Remark
Battery TypeLiFePO4/
Nominal Voltage(V)3845287201075.21248Can be up to 1500Vdc
Nominal Capacity(Ah)280280280280412Capacity can be Battery Module
Energy (kWh)107.520147.840201.600301.056514.176Depends on FinalSpec Confirmation
Max. Output Power(kW)5075100150250
Operating Voltage (V)300~438412.5~602.25562.50~821.25840~1226.4975~1423.5
Dimension (mm) D*W*H790*1400*1250790*1400*1500790*1400*2150790*2090*1950755*2090*2260
Gross weight (Approx.kg)10001320180026204100
Recommend DoD80~90%/
Efficiency of Charge & Discharge≥99.5% @0.2C/
CommunicationCAN/RS485/Modbus/
Parallel Capability15*Clusters/
Operation Temperature(℃)-20~55/
Calendar Life10 Years/
Protection LevelIP21/
Cooling TypeAir cooling + Natural cooling/
StandardsUL9540A; UL1973; CE; IEC62619; UN38.3/


■   Voltage from 192V to 1500Vdc with various capacities

■   Multi-level protections and monitoring

■   Smart monitoring and communication with Inverter, PCS and EMS

■   Various installation supports: wall mounting, rack mounting and container installations

■   Easy and flexible installation

■   Highly reliable lithium battery cells and BMS
