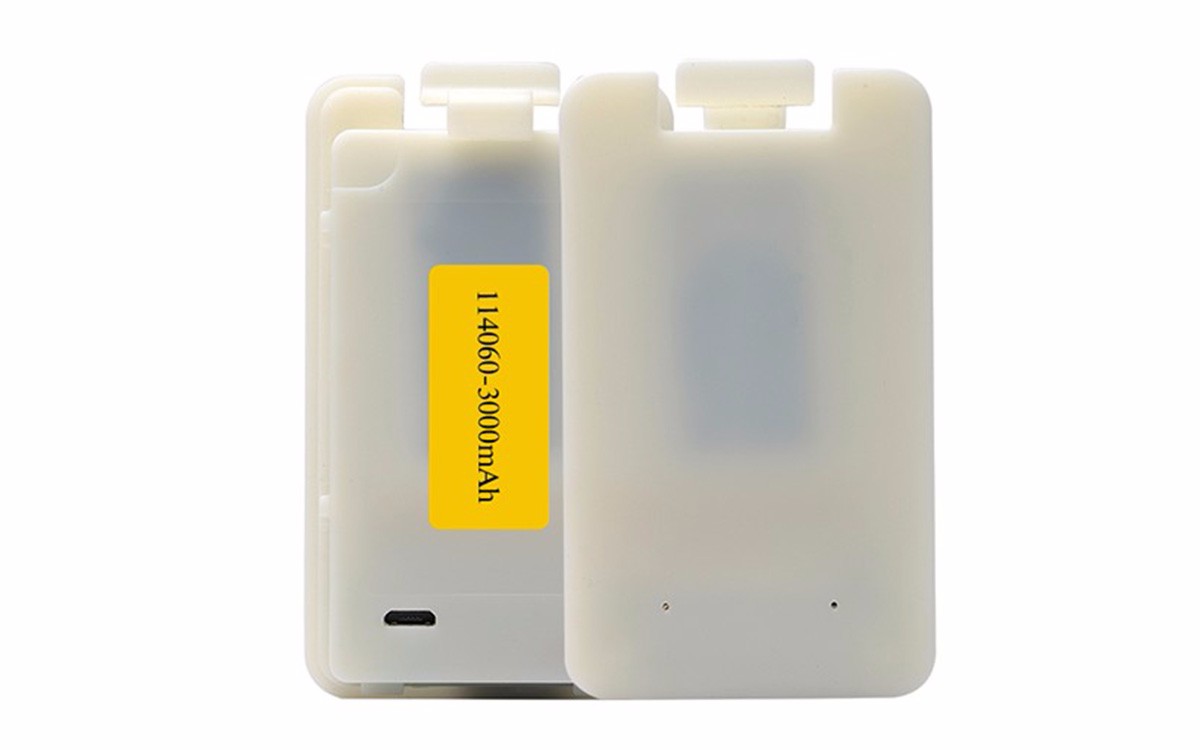

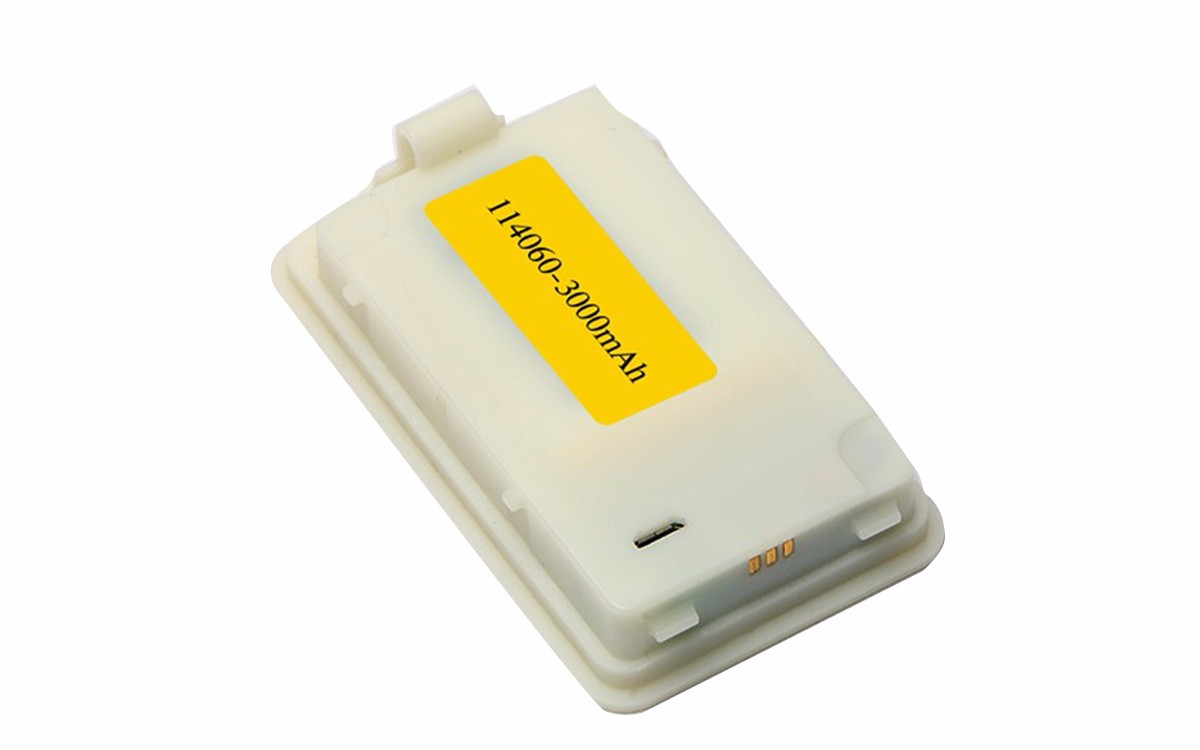

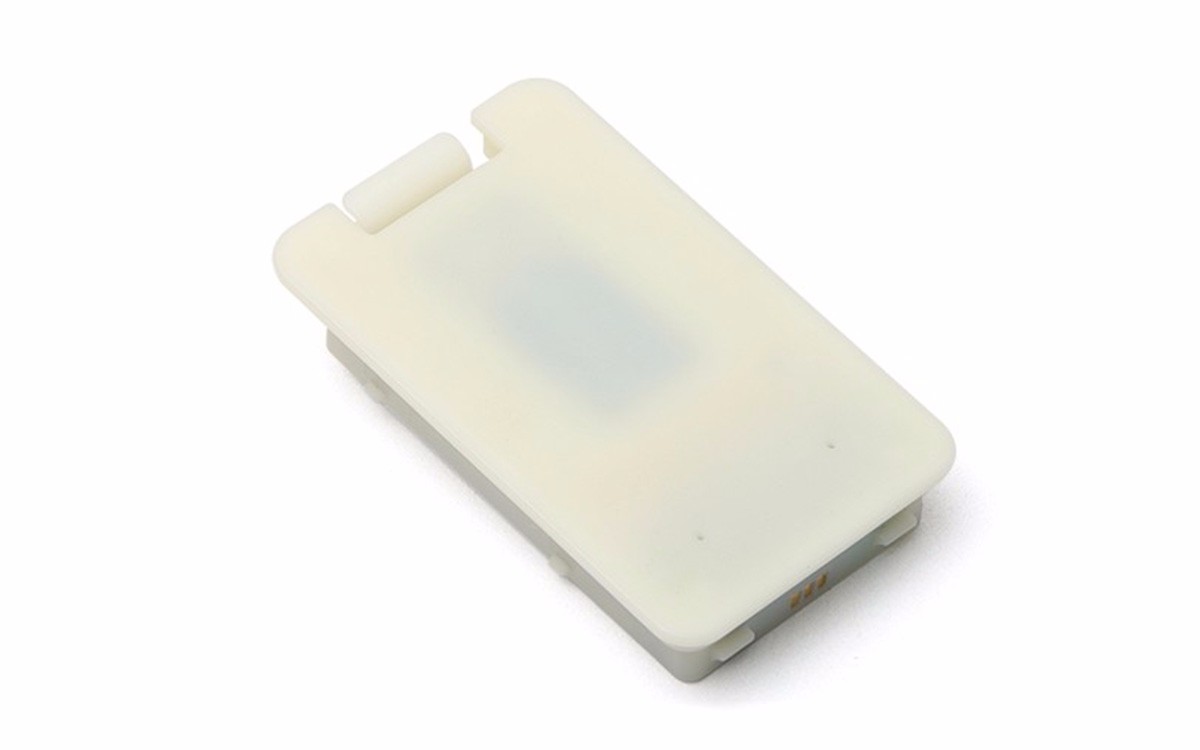

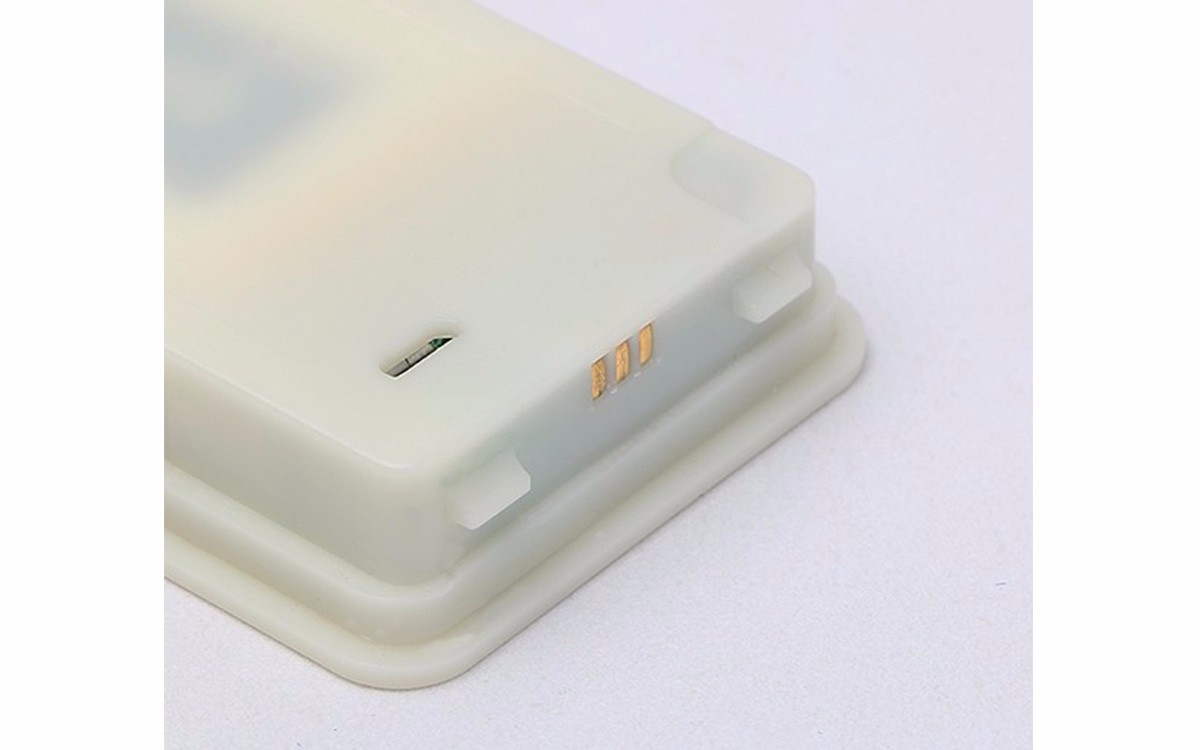

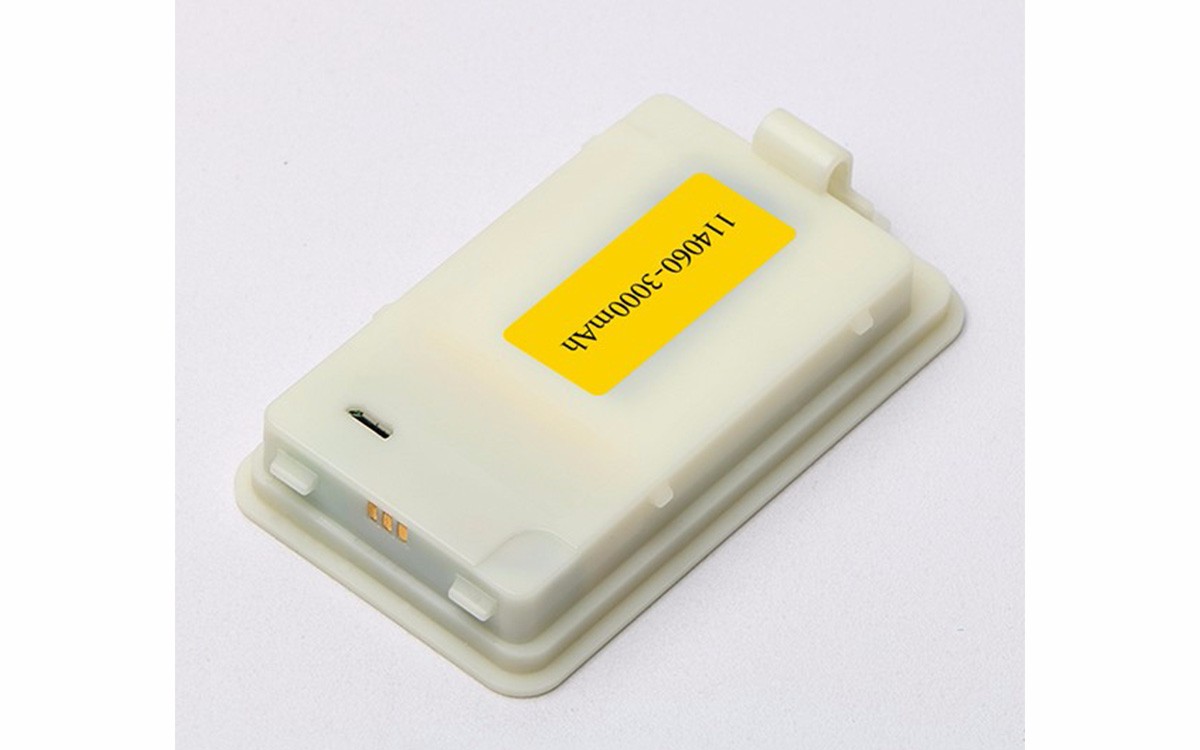

Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device
Application:
Smart Device | Bluetooth Device | Wearable Device | Medical Device
Certification:
 Lithium Li-polymer 7.4V 3AH Battery Pack For Handheld Smart Device

Share it:

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V7.4V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah3Ah
Energy - Wh22.2Wh
Battery ChemicalLi-polymer
Max continuous discharge current - A3A
Peak discharge current – A & Sec6A-2Sec
Max continuous charge current - A1.5A
BMS/PCBPCB



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20~60℃

-4~140°F

Charge Temperature – ℃ / °F

0~40℃

32~104°F

Storage Temperature – ℃ / °F

-20~45℃

-4~113°F

Dimension - mm28*53*80mm
Dimension - Inches1.11*2.09*3.15Inches
Weight - Kg0.12Kg
Weight – Lbs0.26Lbs
Enclosure MaterialABS
TerminalCustomization
CommunicationNone
MaintenanceMaintenance Free
ApplicationHandheld Device
