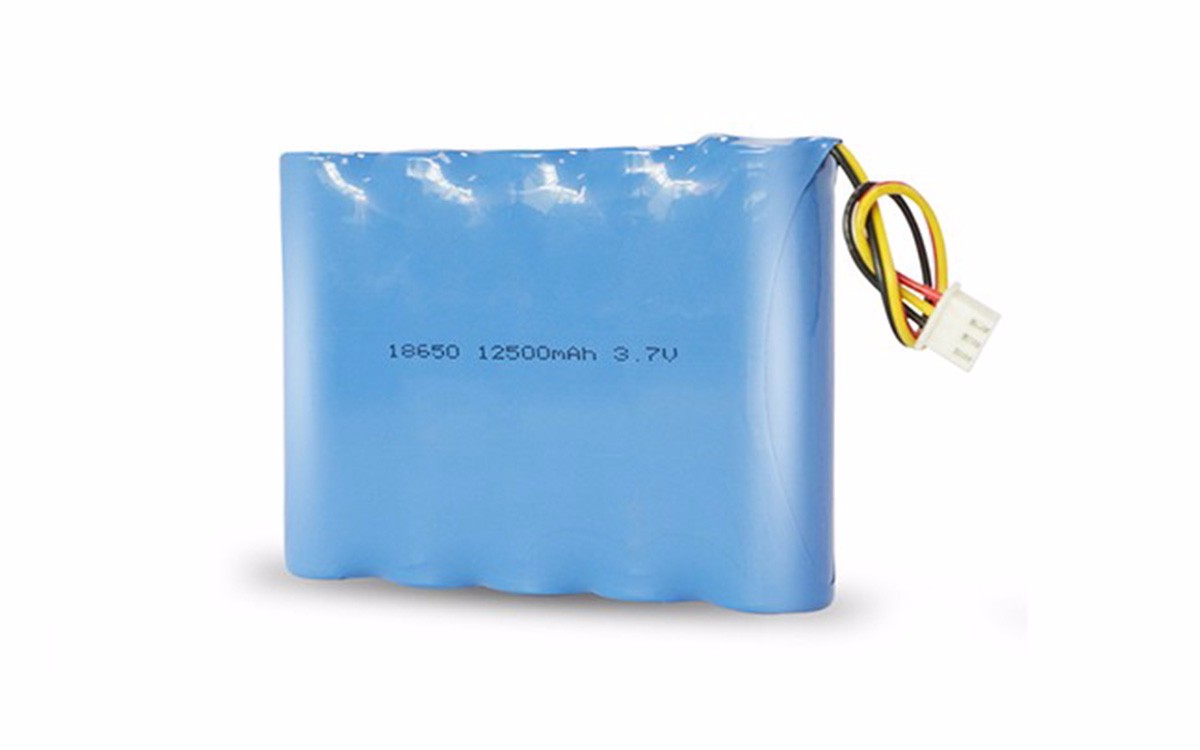

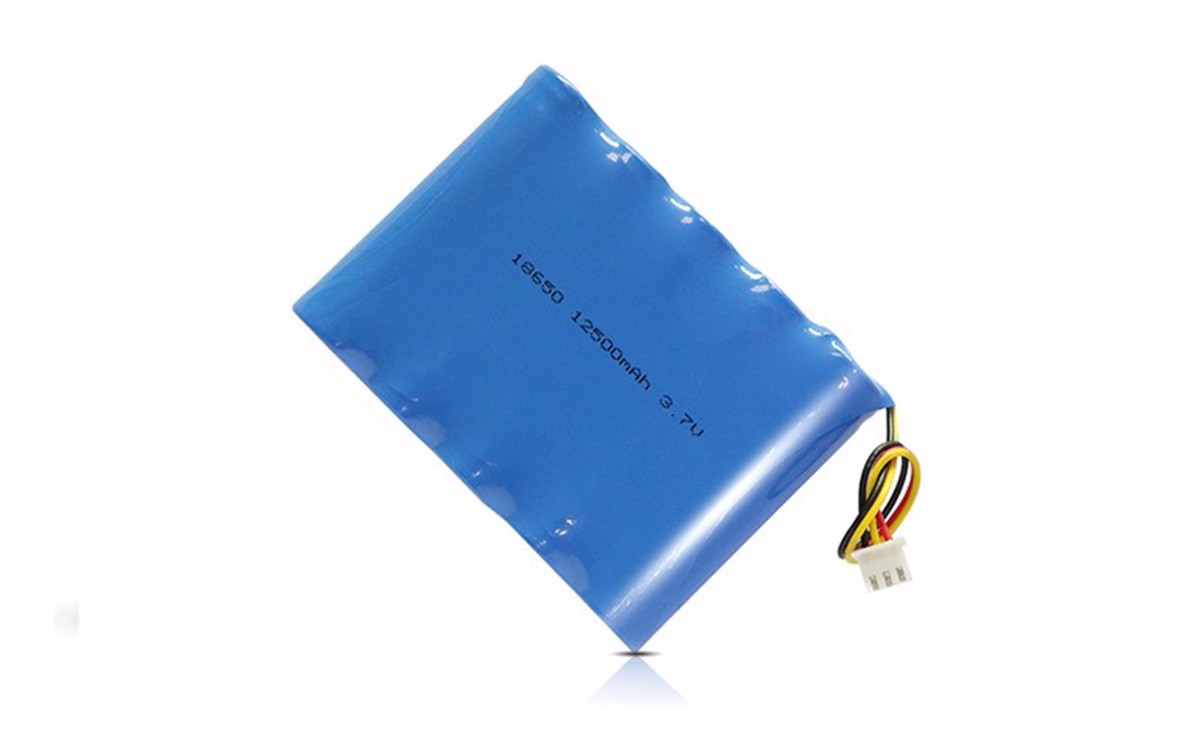

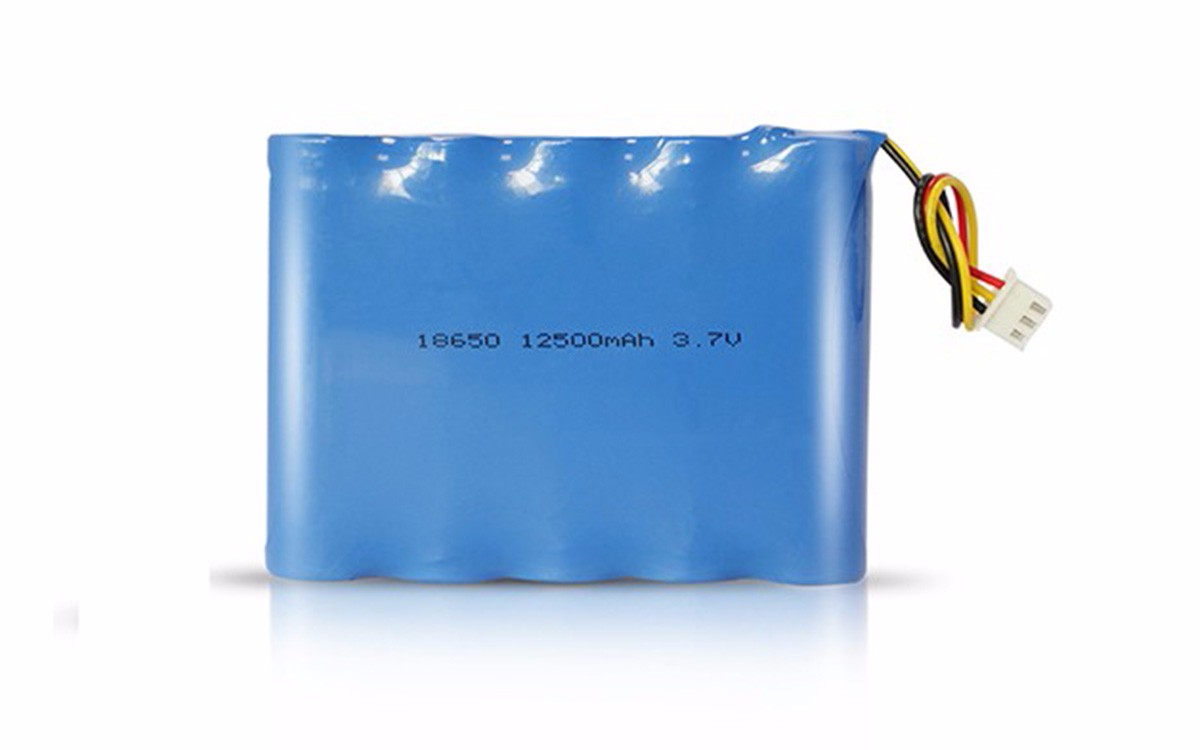

Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot
Application：
Smart Device | Bluetooth Device | Wearable Device | Medical Device
Certification：
Lithium-ion NCM 3.7V 12.5AH Battery Pack For Robot

Share it：

  • Specification
  • Features
  • Download
  • Video
ItemParametersNote
Nominal DC Voltages - V3.7V










The specifications are adjustable according to your specific needs

Rated Capacity - Ah12.5Ah
Energy - Wh46.25Wh
Battery ChemicalNCM
Max continuous discharge current - A12.5A
Peak discharge current – A & Sec25A-2Secs
Max continuous charge current - A6.25A
BMS/PCBBuild-in PCB



Protection

Over-Voltage
Over-Current
Over-Temperature
Short - Circuit
Operation Temperature – ℃ / °F

-20～60℃

-40～140°F

Charge Temperature – ℃ / °F

0～40℃

32～104°F

Storage Temperature – ℃ / °F

-10～45℃

24～113°F

Dimension - mm103*70*20mm
Dimension - Inches4.06*2.76*0.79Inches
Weight - Kg0.28Kg
Weight – Lbs0.62Lbs
Enclosure MaterialPVC
TerminalCustomization
CommunicationNone
MaintenanceMaintenance Free
ApplicationElectric Vehicle / Robot, Back-up etc
