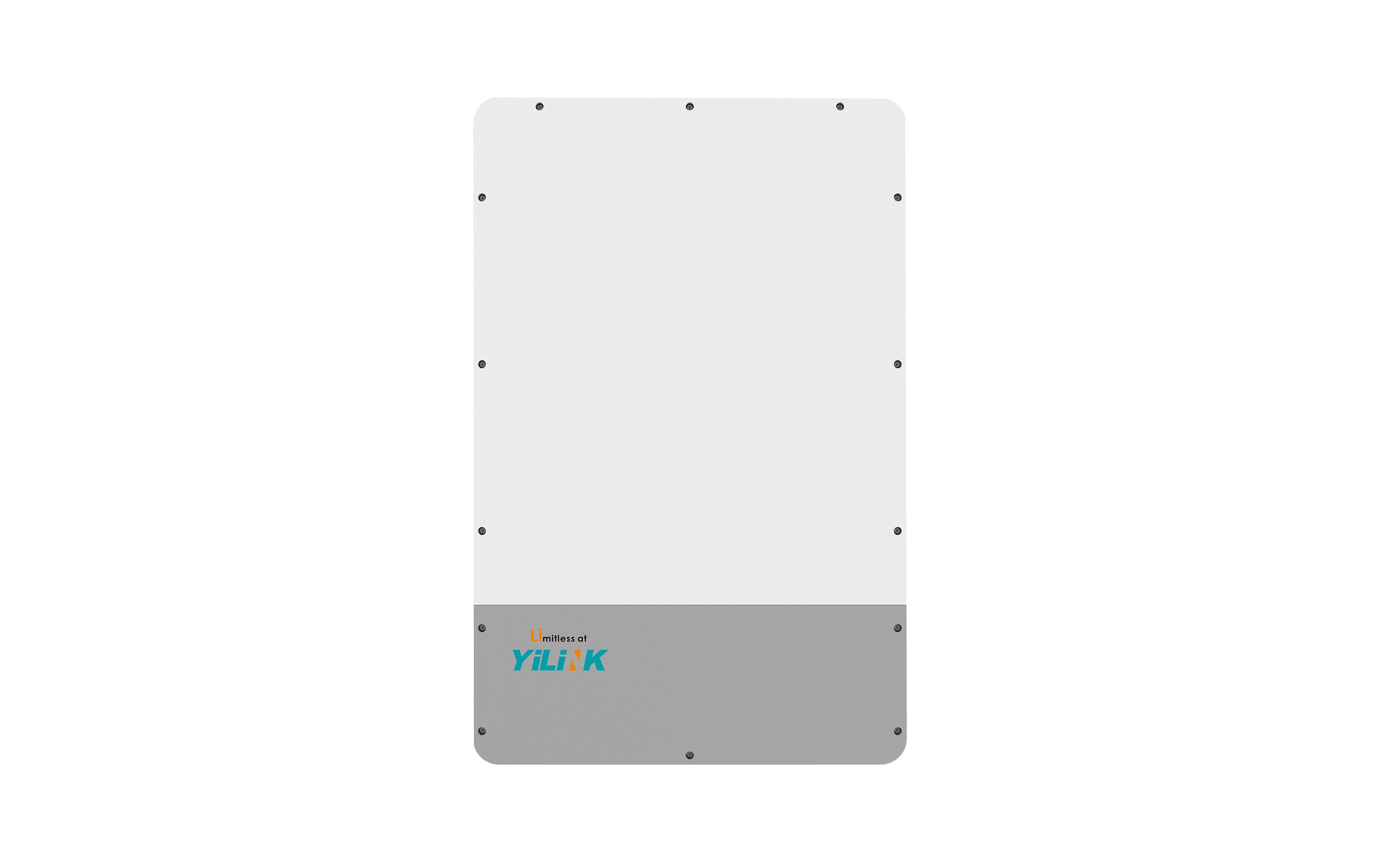

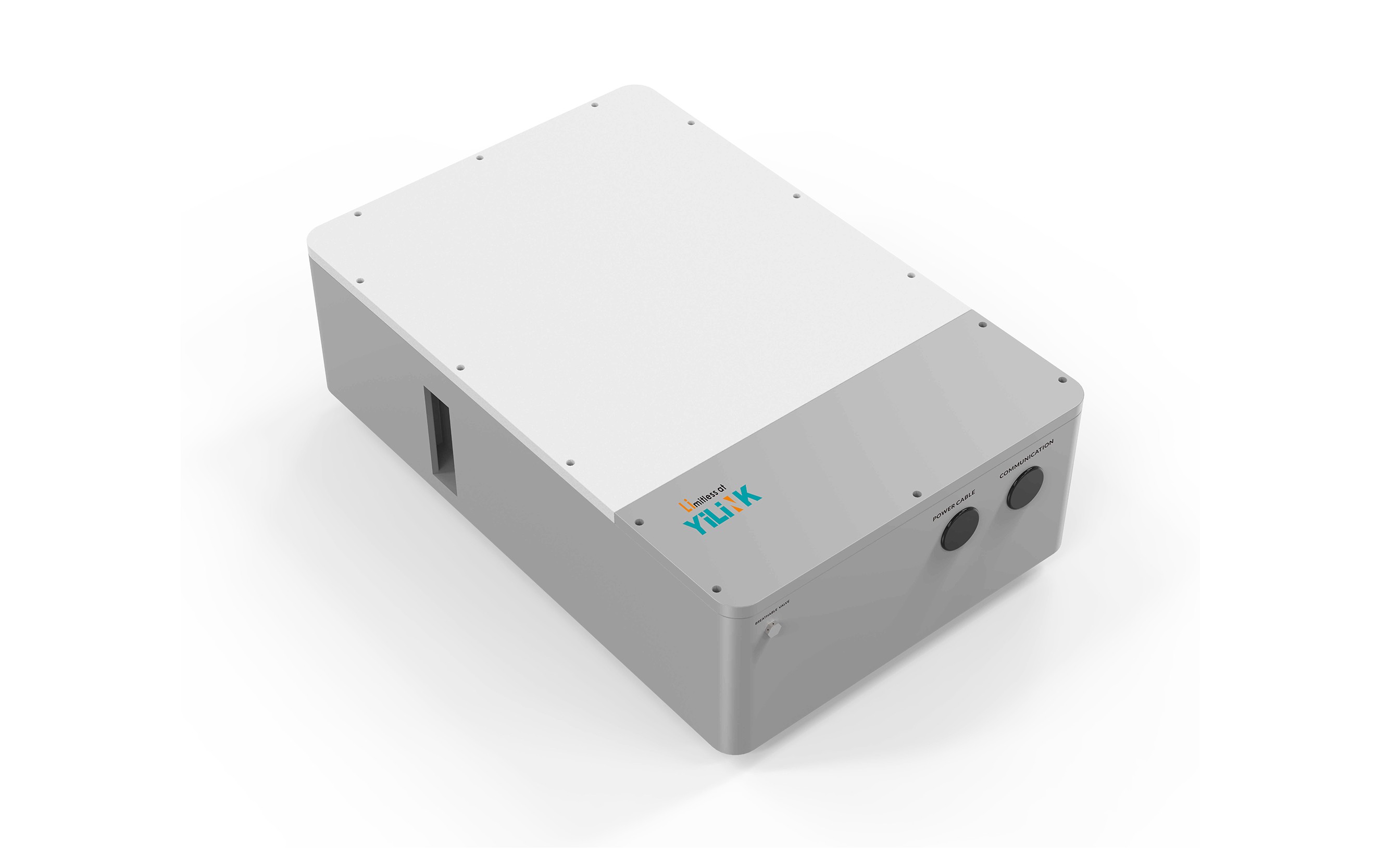

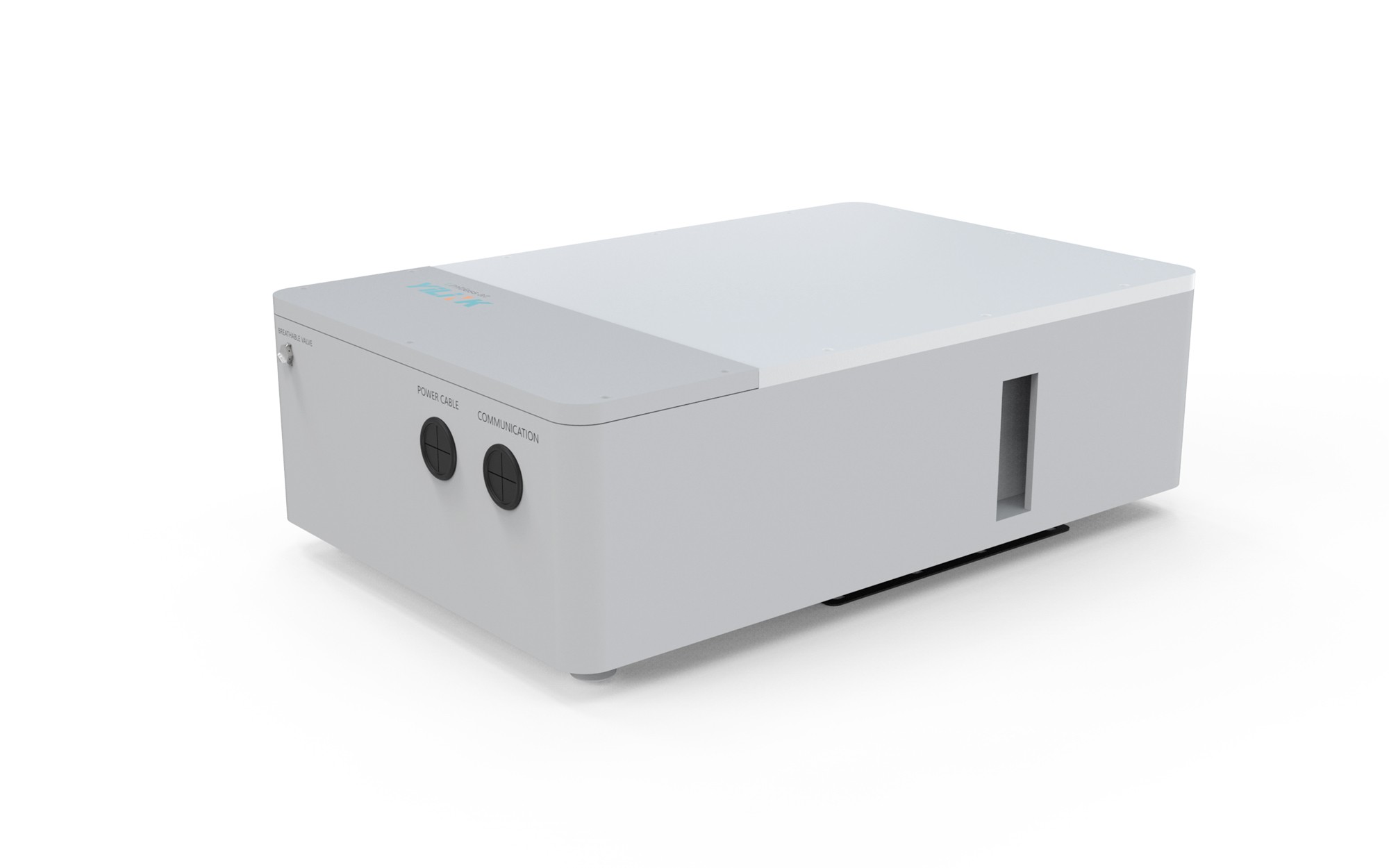

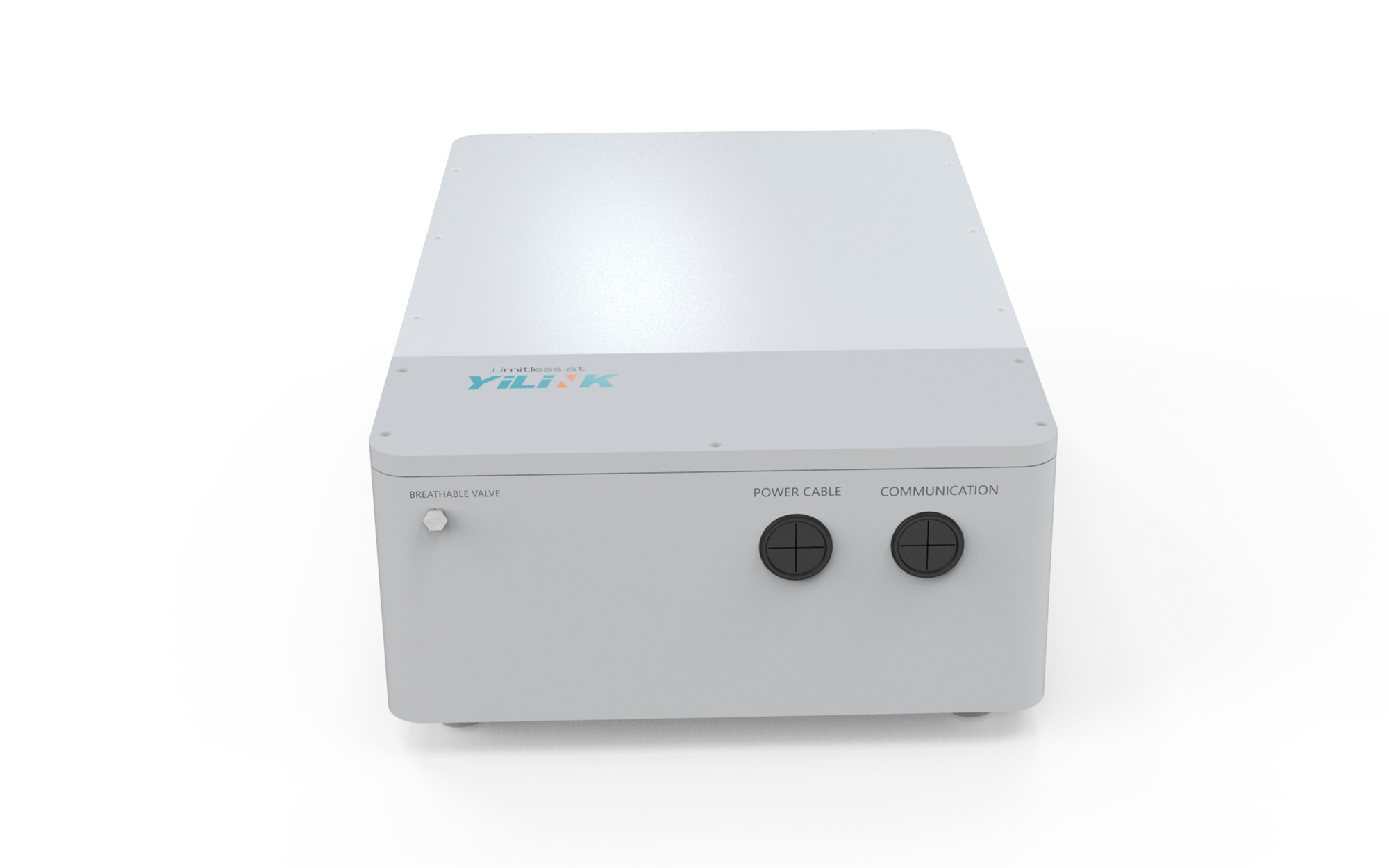

High Voltage Battery 192-240V LifePO4Lithium Battery YlLlNK iPower

iPower is specially tailored for energy storage system, it offers a greater efficiency, higher reliability, intelligent battery management system, intelligent battery monitoring system, long lifespan to your solar system.

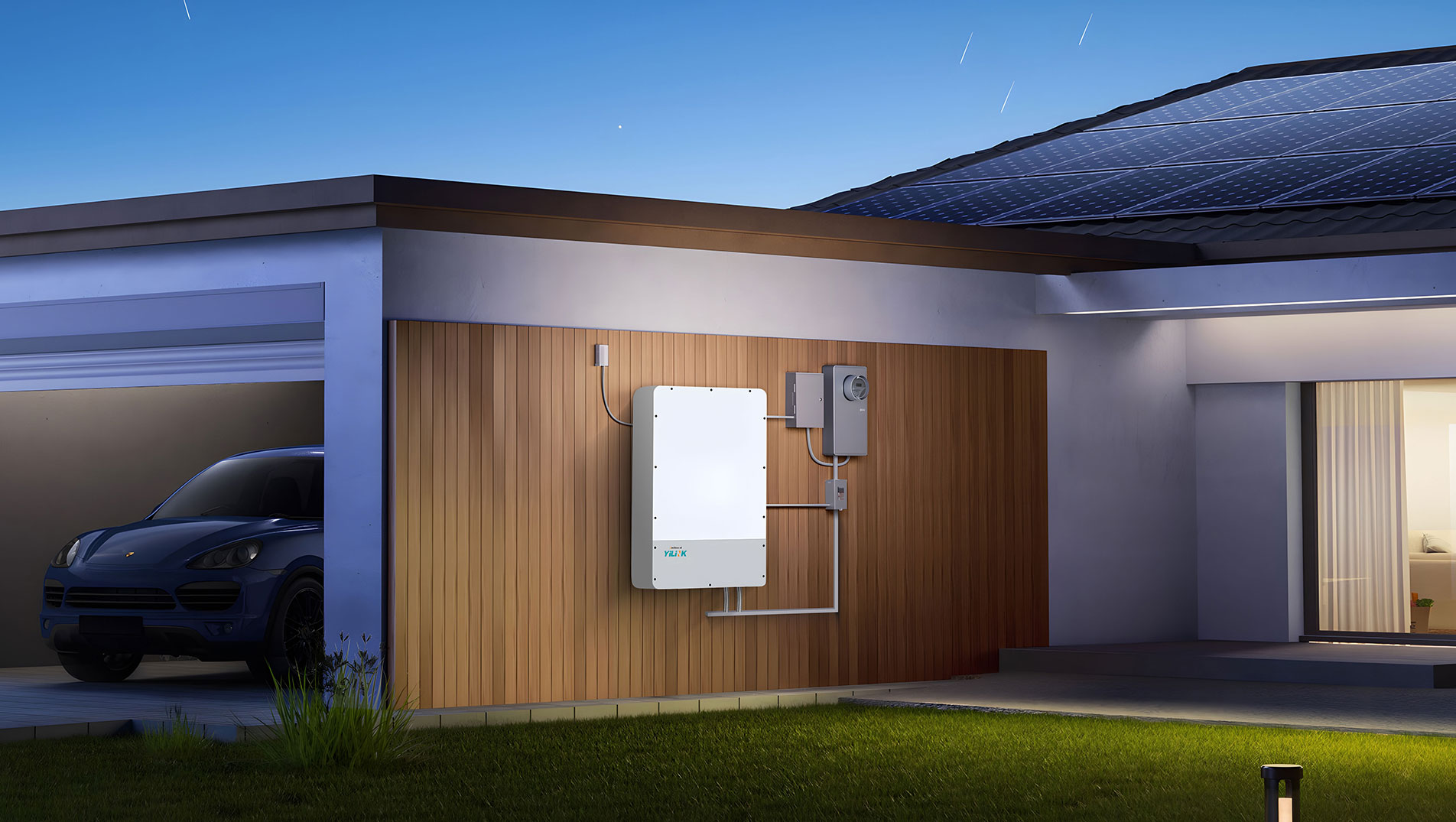

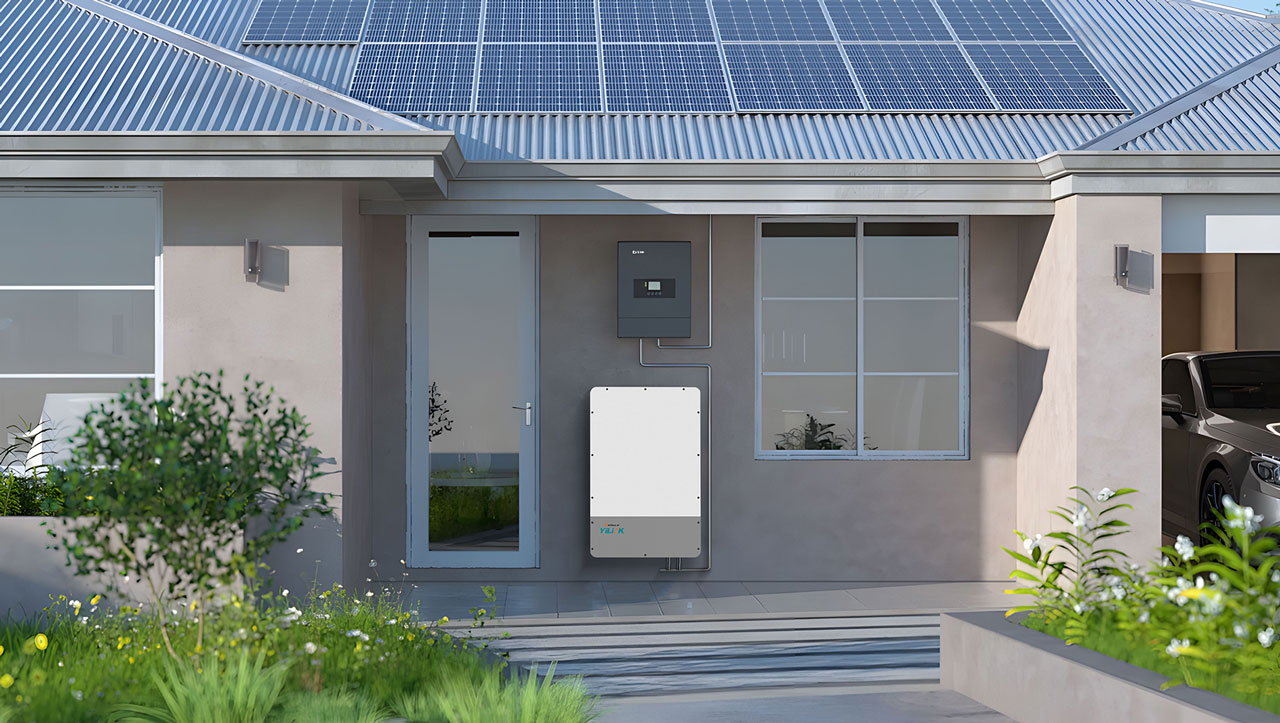

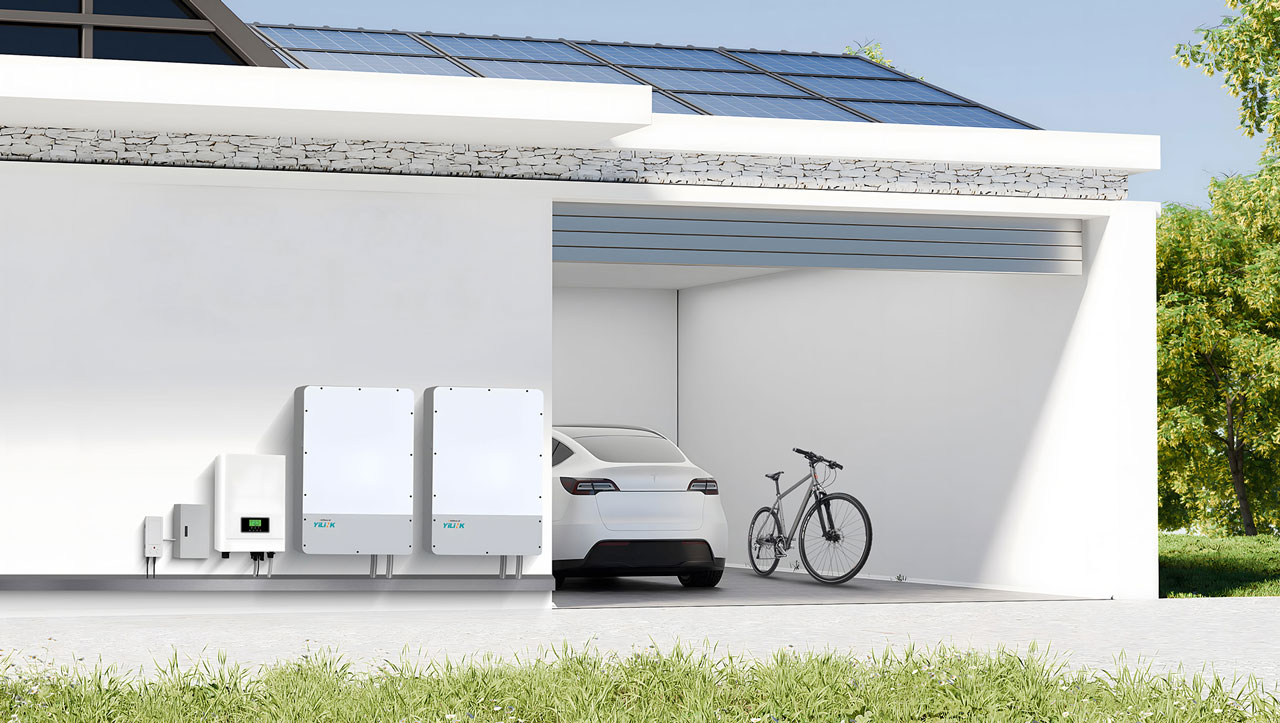

iPower LifePO4 batteries are ideal for off-grid and hybriId applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, commercial, farm, factory, data room, holiday hotel, etc.


Application:
Solar System | Residential | Commercial | Off-grid | Hybrid | Microgrid
Certification:
High Voltage Battery  192-240V LifePO4Lithium Battery YlLlNK iPower

Share it:

  • Specification
  • Features
  • Download
  • Video
ModelYL-HV192100-50YL-HV256100-50
Battery TypeLiFePO4
Nominal Voltage(V)192256
Nominal Capacity(Ah)100100
Nominal Energy(kWh)19.225.6
Max. Output Power(kW)9.612.8
Recommended Charge Current(A)2020
Max. Continuous Charge Current(A)5050
Max. Continuous Discharge Current(A)5050
Net Weight(kg)200260
Dimension(mm)W*D*H580*880*420580*1040*420
Installation WayIndoor Floor Installatio
IP RatingIP31
Battery LevelBrand New Premium Grade A Battery Cells
BMS LeveHigh Precision Intelligent BMS
Alarm and ProtectionMultiple Protections from Battery Cells to Battery Pack
Operating Voltag(V)5162.00~219.00216.00~292.00
Operating Temperature Charging0~55°C
Operating Temperature Discharging20~60°C
Months Self Discharge≤2%,@25℃
Efficiency Of Charge &Discharge≥99.5%,@0.2C
CommunicationSupport up to 7PCS in Parallel
Cycle LifeMore than 6,000 Times*
CommunicationCAN/RS485/Dry Contact
CommunicationGrowatt, Deye, Sol-Ark, SunSynk, Goodwe, Sofar, etc
Parallel CapabilitySupport up to 7PCS in Parallel
Monitoring & CommissioningPC Terminal or WiFi Module Remote Monitoring (Optional)
Warranty

5 to 10 Years

Certifications & Safety Standards

CE, IEC62619, IEC/EN61000-3, IEC/EN61000-6, ROHS, UL1973, UN38.3, MSDS

@0.2C, 80% DoD, 25℃

■   Parallel capability up to 7 units, meeting different site energy requirements

■   Excellent inverter communication compatibility:

     Deye, Growatt, Sol-Ark, SunSynk, Victron, Voltronic, Goodwe, Luxpower, Sofar, SMA, Schneider, Solis, TBB, INVT, etc

■   PC Monitoring and optional WiFi remote monitoring & commissioning

■   Wall-mounted, floor-standing, and rack-mounted installations supported

■   International CLASS 9 dangerous goods packing certifications

■   High energy density with light-weight

■   Full set of matched accessories supported
