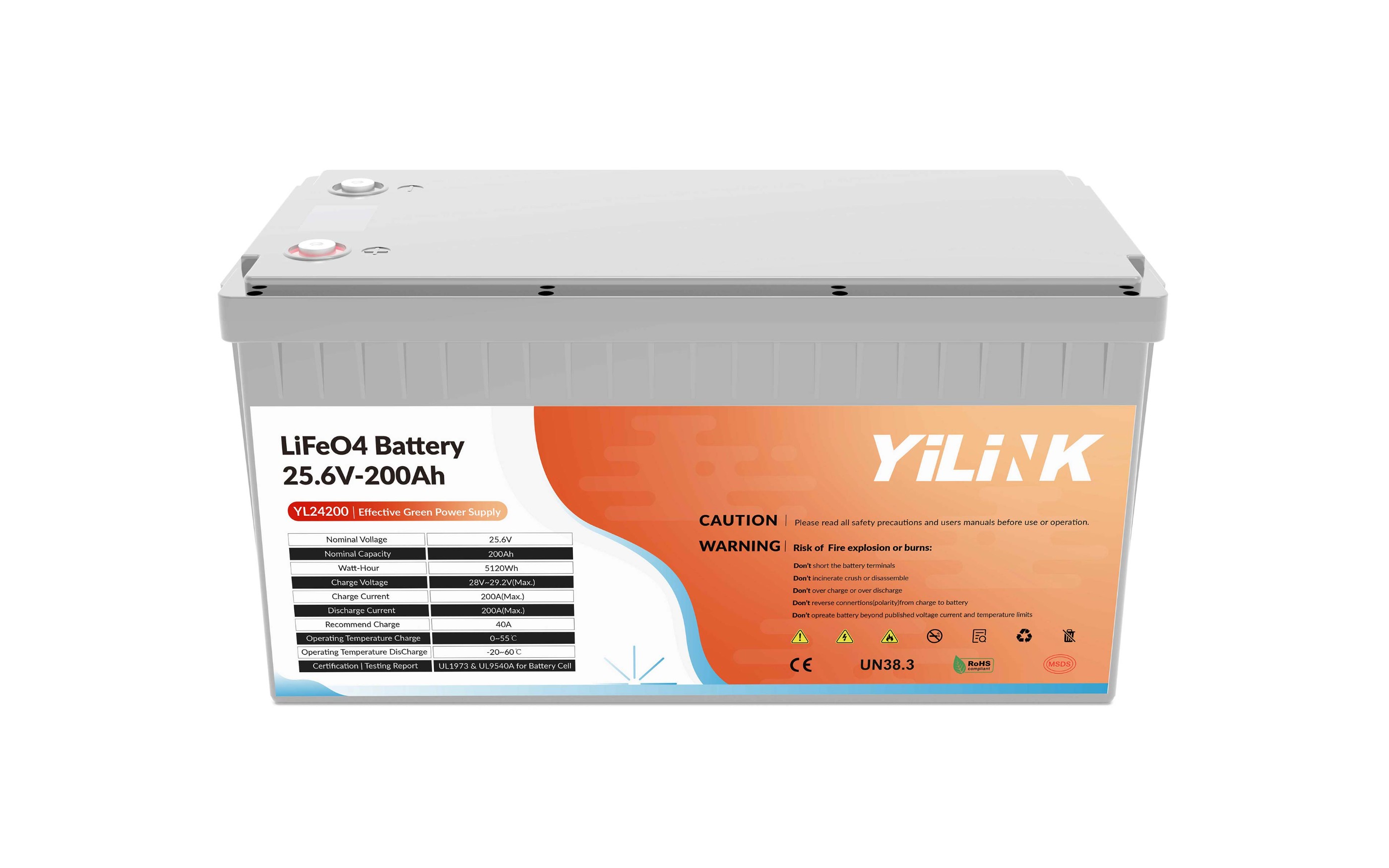

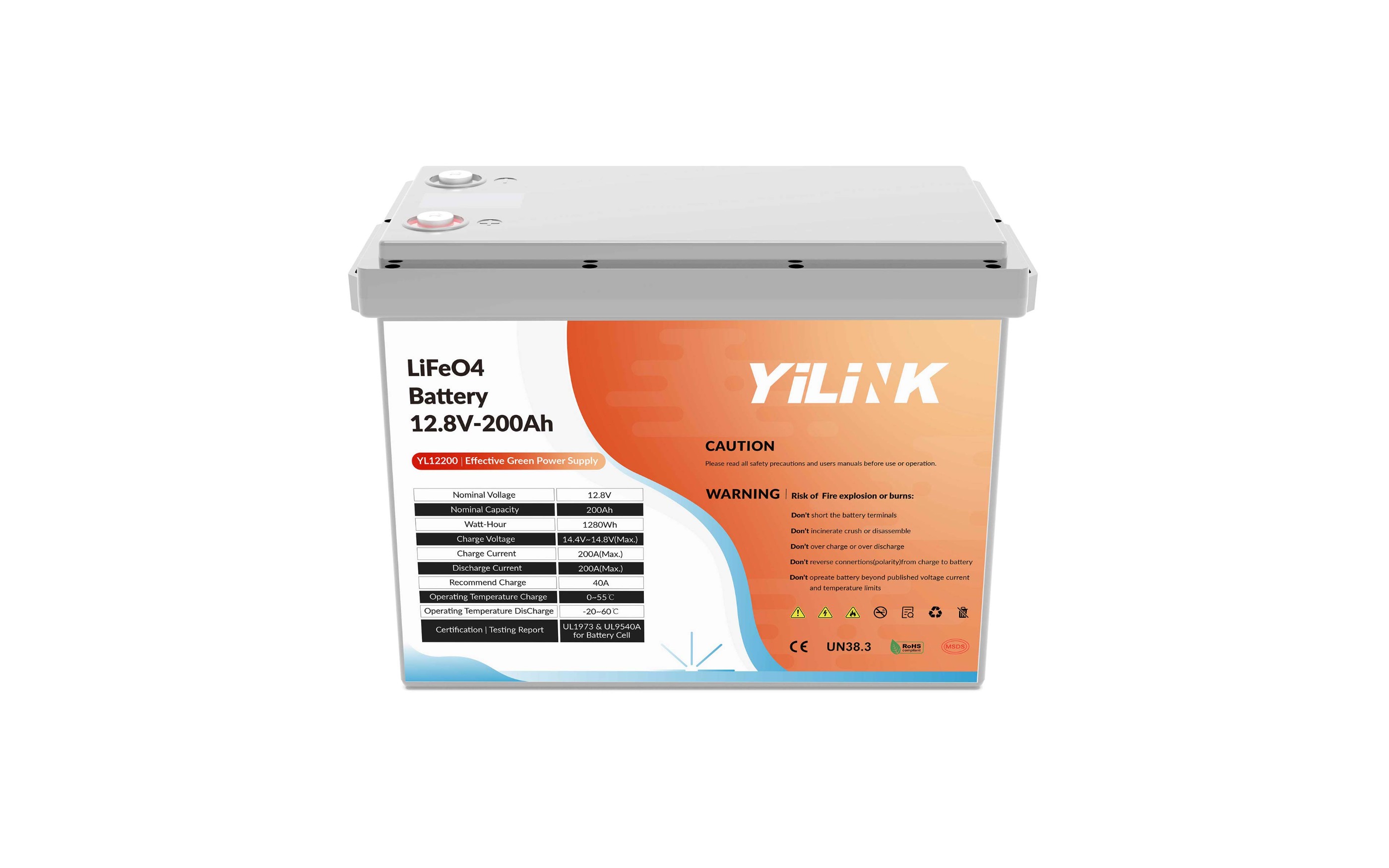

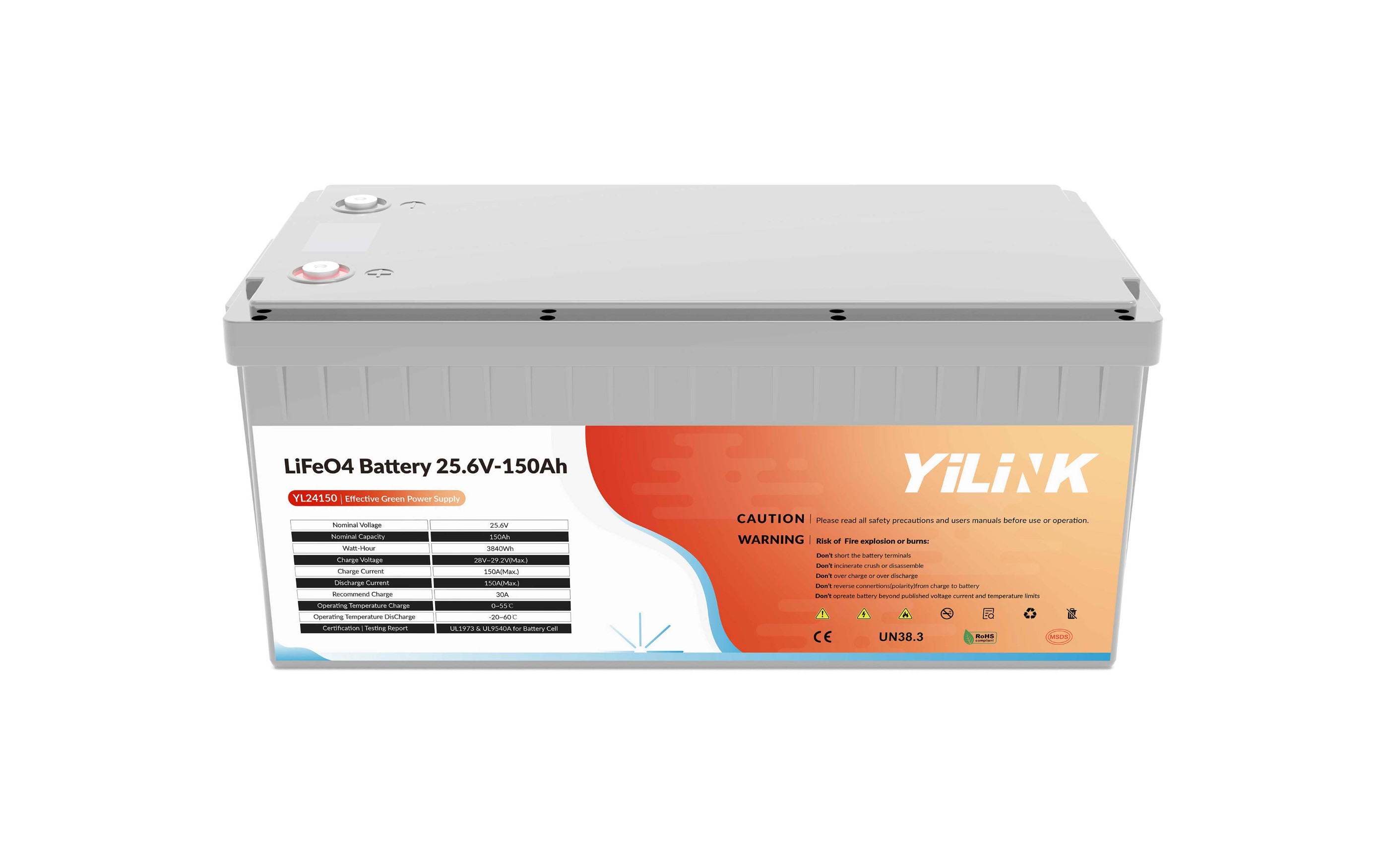

LFP-ABS Series 12.8V & 25.6V

Throughout our initial journey of Lithium battery manufacturing, a great many clients presented their demands of high reliable performances LifePO4 battery. This demand corresponds just with what we are capable of and gradually turned our vision to be solely devoted to first class lithium battery manufacturing.

YL LFP-ABS is born from the idea that it can provide you with reliable, long-cycle span, all-round intelligent management, self-protecting and safe green energy at economic way. Its a perfect replacement for the conventional lead-acid, AGM, gel batteries and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine stadting battery, mobile POS and mining light, etc.

Application：

Certification：

INQUIRY

Share it：

Specification
Features
Download
Video

Model	YL1250	YL12100	YL12150	YL12200	YL2450	YL24100	YL24200
Electrical Characteristics
Nominal Voltage(V)	12.8				25.6
Nominal Capacity(Ah)	50	100	150	200	50	100	200
Energy(kWh)	0.64	1.28	1.92	2.56	1.28	2.56	5.12
Internal Resistance (mΩ)	≤80	≤75	≤70	≤65	≤70	≤65	≤60
Cycle Life*	≥3500 Cycles@25℃
Design Life (Years)	≥10
Months Self Discharge	2%, @35℃
Effciency of Charge	≥99%, @0.2C
Effciency of Discharge	≥99%, @0.2C
Charge
Charge Cut-off Voltage (V)	14.4~14.8				28.8~29.6
Charge Mode	CC-CV(0.2C to 14.4V, then 14.4V Charge Current to 0.02C)				CC-CV(0.2C to 28.8V, then 28.8V Charge Current to 0.02C)
Standard Charge Current (A)	10	20	30	40	10	20	40
Max. Continuous Charge Current (A)	50	100	150	200	50	100	200
Operating Voltag	20.00~29.20V		37.50~54.75V
Discharge
Discharge Cut-off Voltage (V)	10~11.2				20~22.4
Standard Discharge Current (A)	10	20	30	40	10	20	40
Max. Continuous Discharge Current (A)	50	100	150	200	50	100	200
Environmental
Charge Temperature (℃)	0~55
Discharge Temperature (℃)	-20~60
Storage Temperature (℃)	-10~45℃ @60%±25% Relative Humidity
Mechanical
Plastic Case	ABS
Dimensions ( LWH mm)	229138208	330172215	483170240	552240218	330172215	522240218	522268252
Weight (kg)	6.5	12.5	18.5	25	12.5	25	38
Terminal Type	M6				M8
Cell Type-Chemi stry	LiFePO4
Series & Parallel Capability	4S/4P				2S/4P
Others(Option)
Communication	Bluetooth
Display	LCD Screen

*Test condition: 0.5C Charging/Discharging, @25℃, 80% Dod

■ Cell Discharge Over Temperature

■ Cell Over-discharge Voltage

■ Cell Charge Over Temperature

■ Cell Over-charge Voltage

■ Over-current Discharge

■ Over-current Charge

■ Mos Over Temperature

■ Short Circuit Protection

■ Fault Protection
