LIFEPO4

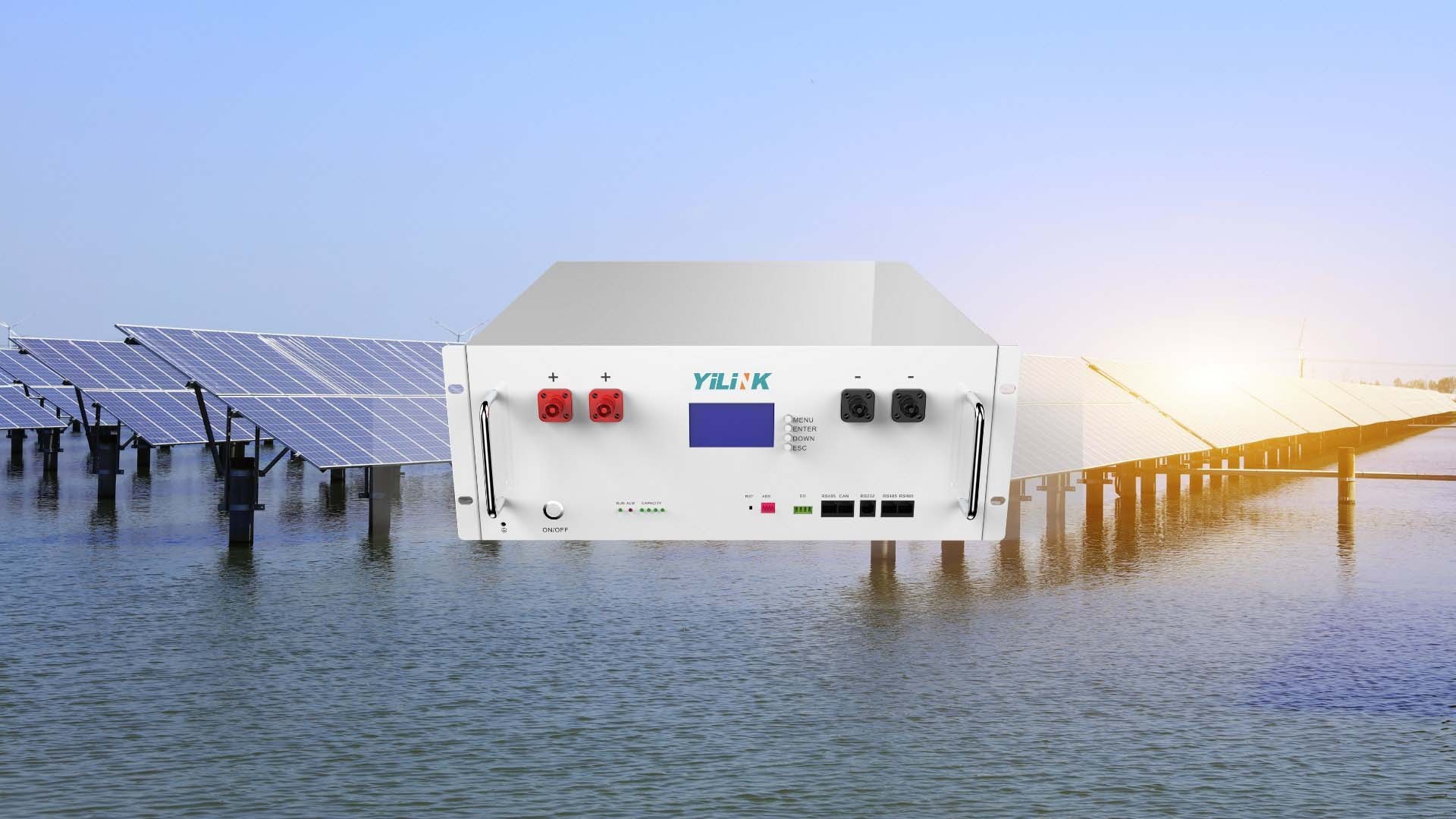

LifePO4 Rack Mounted Battery Pack
Through smart Lithium, Solar Precious Gifts to The Planet Should be Shared with and Sustained for Every People.
Easily integrated with your inverter to store
the energy from sun

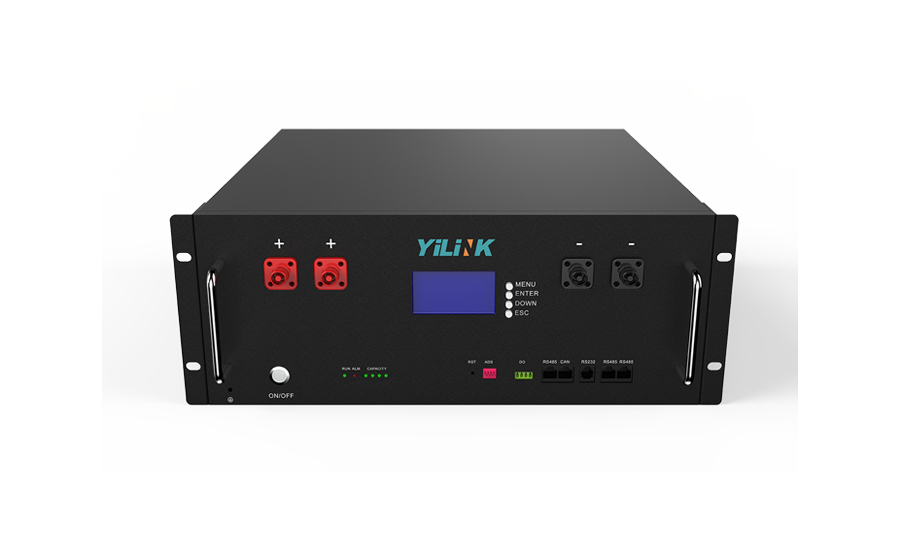

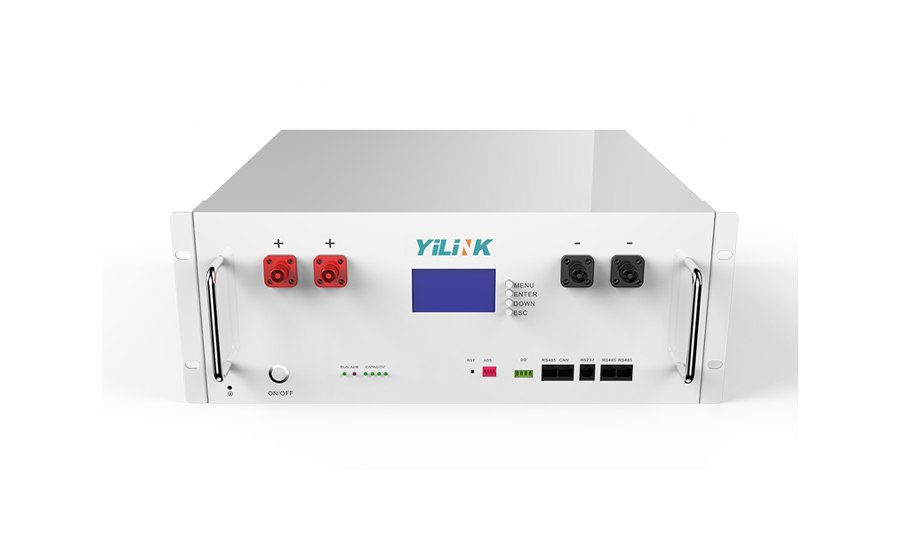

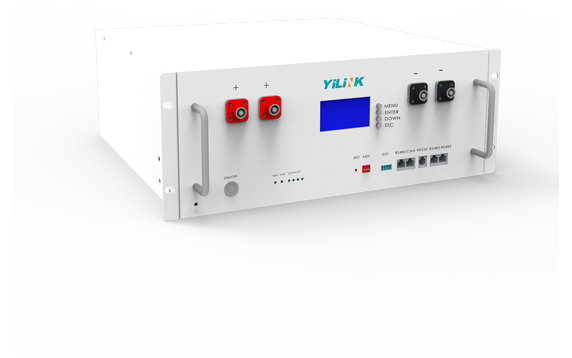

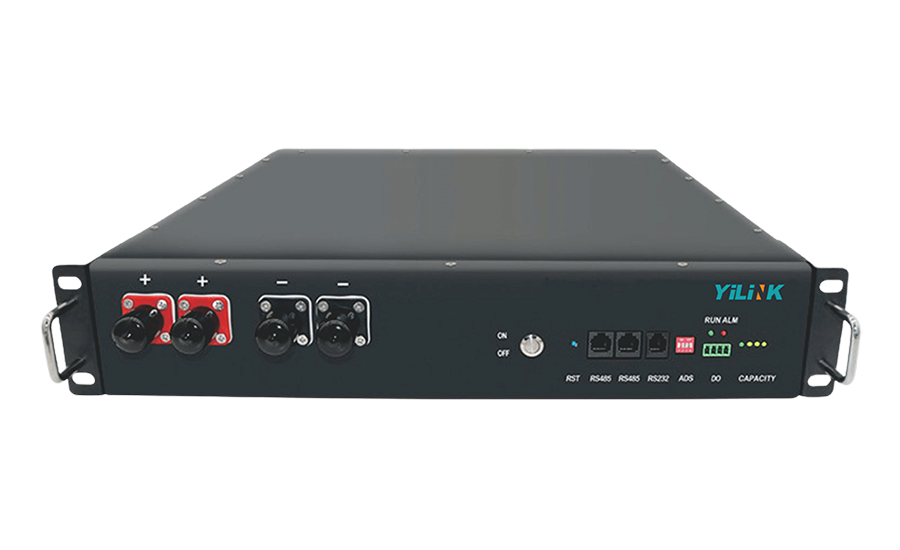

Yilink iPower Seires 19’rack mounted battery is a new generation of lithium battery composed of non-toxic and harmless lithium iron phosphate chemical, high consistency first-class LFP battery cell, and great precision intelligent BMS, which can enhance the reliability, flexibility and durability of your solar system, UPS, and data-room backup system. Its good compatibility with inverters and PCS makes your solar system more intelligent.
Available battery monitoring software ■
Bluetooth-APP Monitoring (Optional) ■
All around communication interface: ■
CAN, RS485, RS232, Dry contac
Build-in Intelligent battery protection system ■
Build-in Intelligent battery monitoring system ■

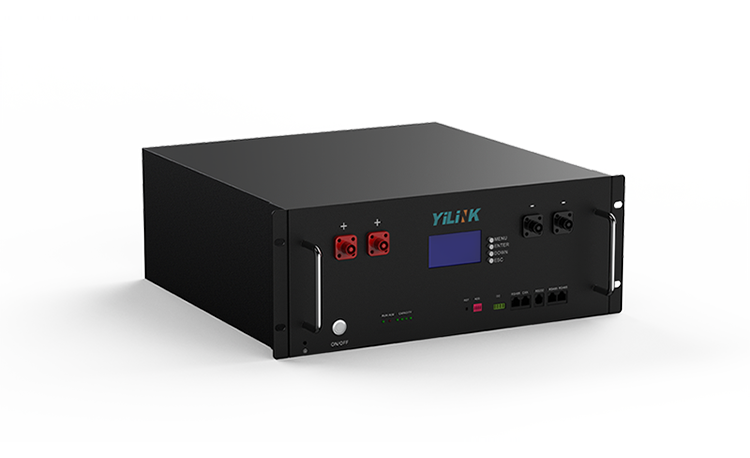

19'' Rack mounted design ■
Light-weight ■
Scalable up to 15 unit ■

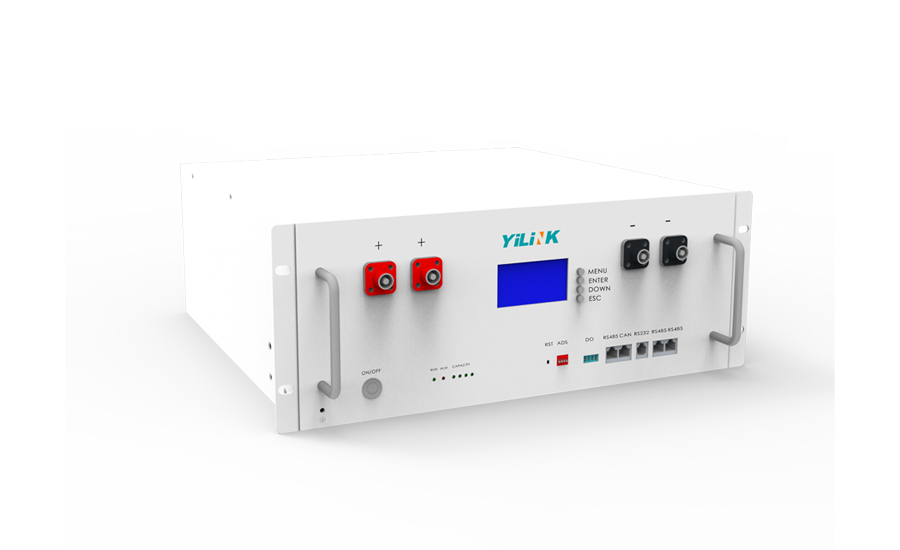

LCD Screen/App monitoring(Optional) ■
Maintenance free ■
Wide range of operation environment ■
Compatible with most common inverters ■
Growatt ●
Goodwe ●
Victron ●
Voltronic ●
Deye ●
LuxPower ●
SMA ●
Sofar ●
More inverters brand ●
■ 10 Years Warranty
■ More than 98% efficiency
■ LifePO4 Chemical Materials
■ Comply with IEC62619,UL1642,EMC,CE,ROHS,UN38.3
■ Designed life >15 Years
■ Cells balance system
■ 6000+ Cycles
■ Non-Toxic & Non-Hazardous cobalt-free
■ Eco-Friendly

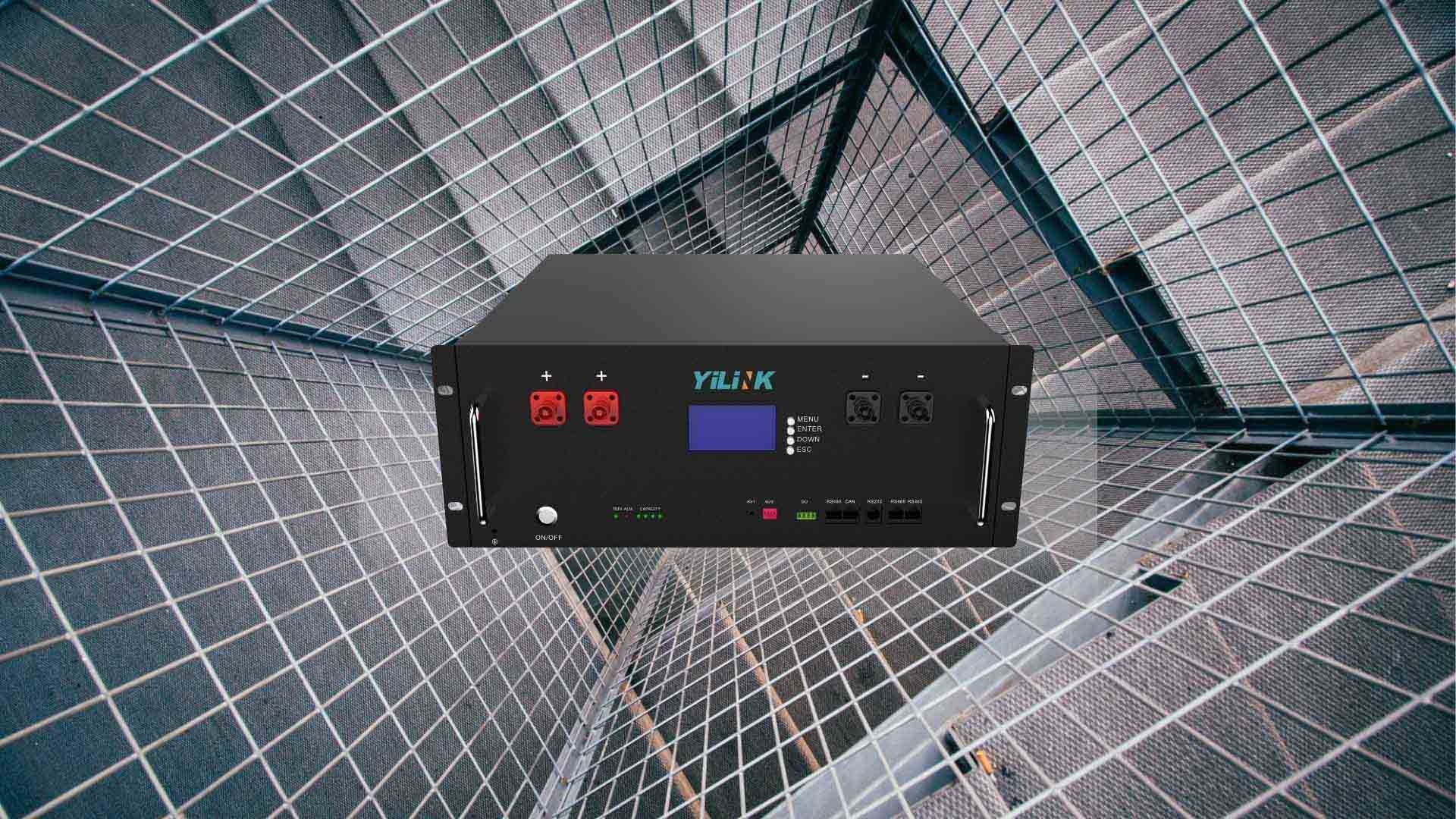

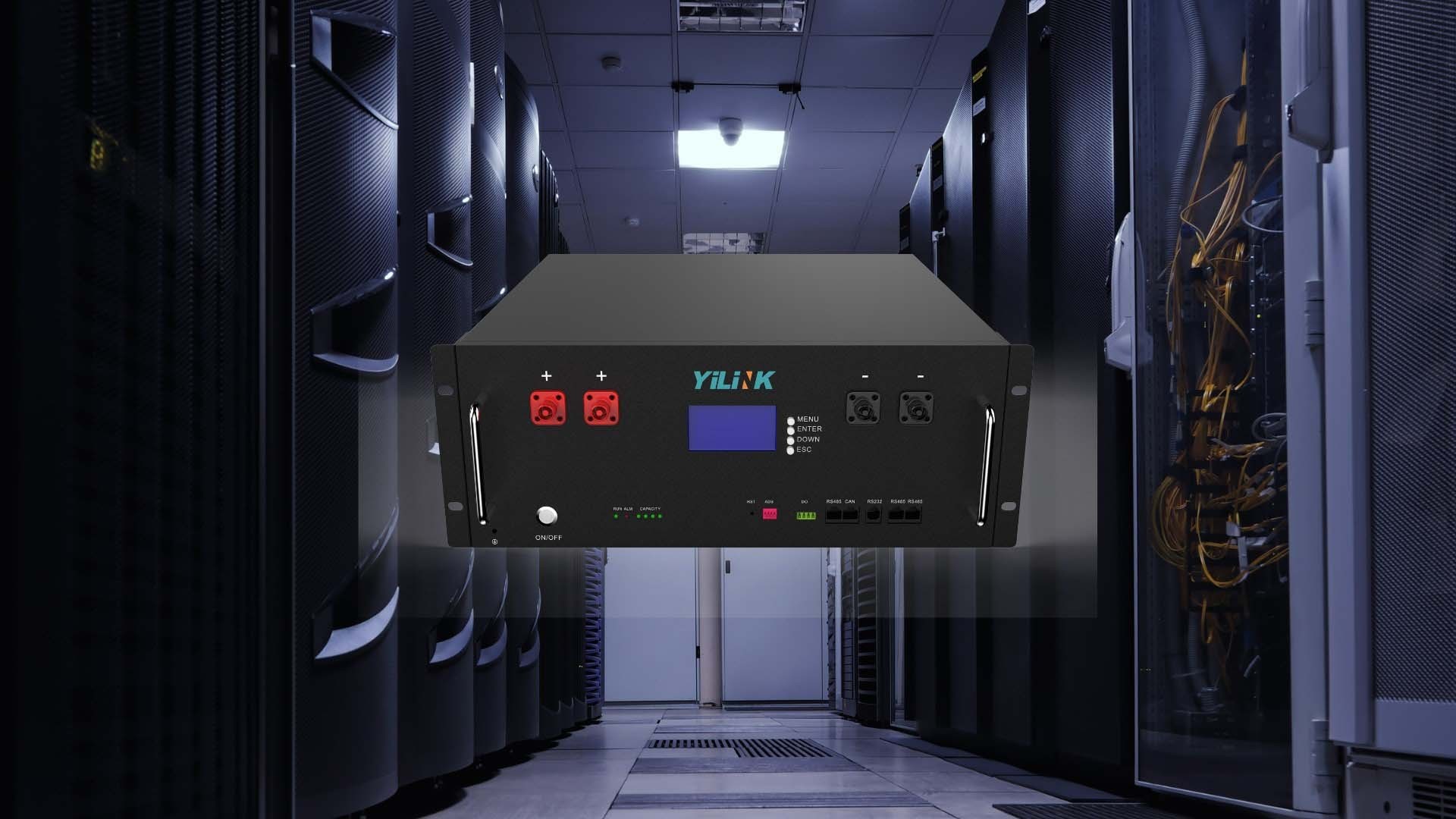

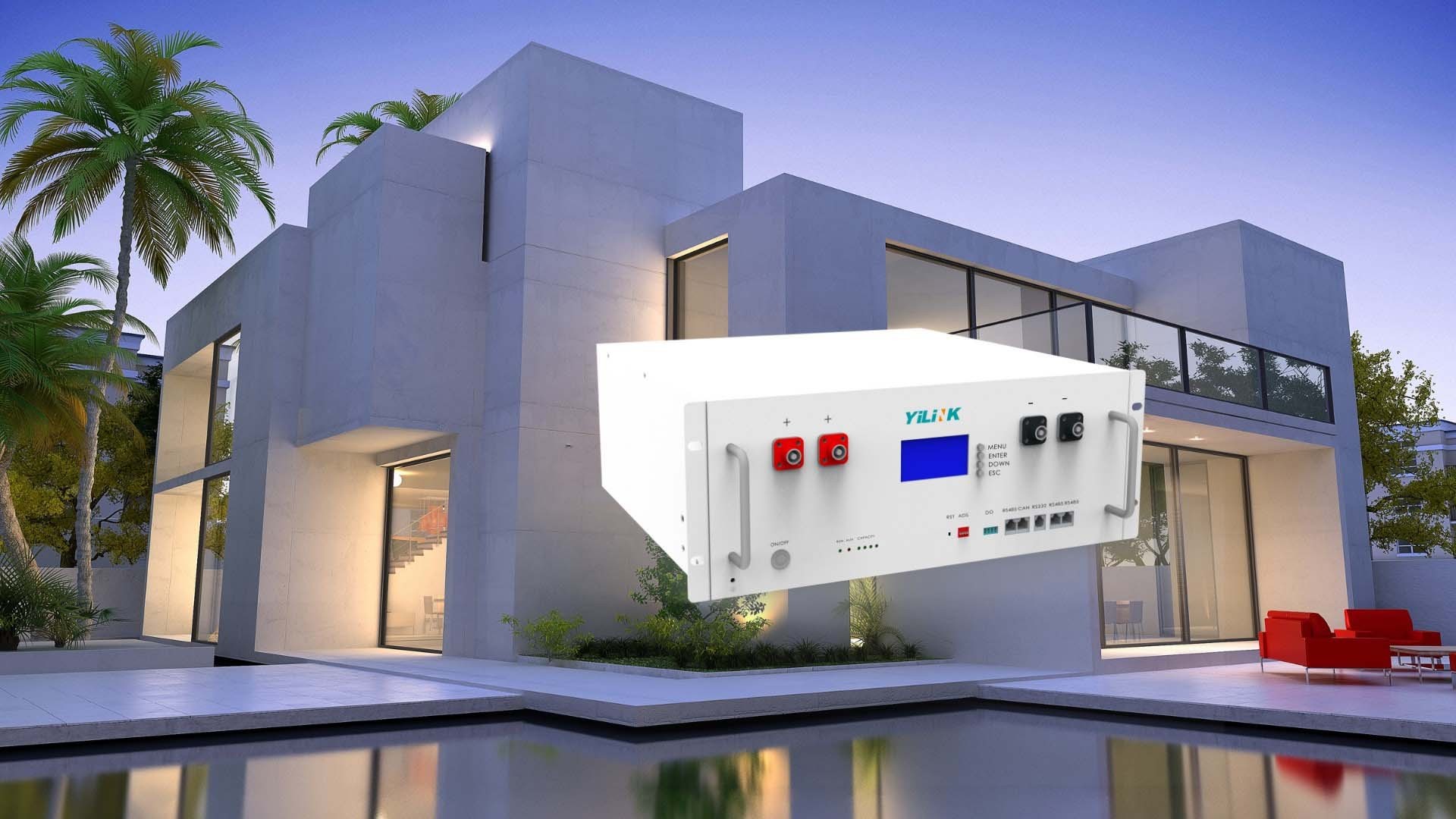

iPower LifePO4 batteries are ideal for off-grid and hybrid applications, offering a solution that's built for the long run and has the ability to be deployed and used in a variety of scenarios, for instance, residential, farm, factory, data room, holiday hotel, etc.
A Glance at iPower
Energy(wh)
Max Continuous Power(w)
Peak.Power(w)3 sec.
Net Weight(kg)
Dimension(mm)W*D*H
Working Voltage(V)
Operating Temperature Charging(℃)
Operating Temperature Discharging(℃)
Months self Discharge
Efficiency Of Charge &Discharge
Communication
Cycle Life
Warranty
2400
2640
27
442*420*132
40~54
0~55
-20~60
≤2%，@35℃
≥99.5%，@0.2C
CAN/RS485/RS232/Dry Contact
≥6000，35℃
10 Years
4800
6000
58
442*450*178
7200
77
442*480*178
9600
93
442*450*223
Discover iPower, Discover Limitless
